Winches12000lb
;
Special Features.
  • IP67 Motor& Solenoid

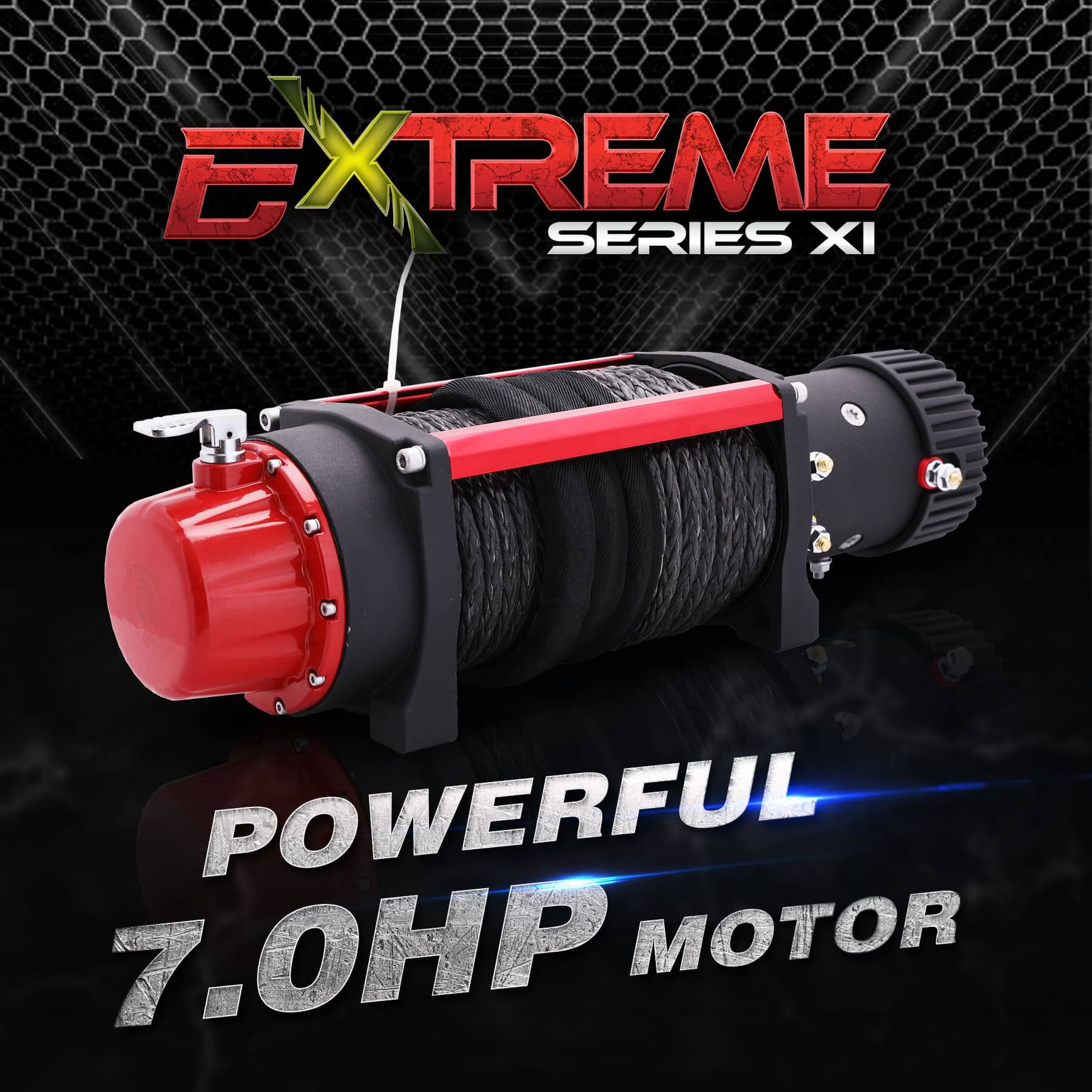

  • Powerful 7 HP / 5.2KW Motor
  • Brake in Moter Side, very quiet and won’t heat up the drum.
  • Clutch Lever Designed for easy access and installation.
  • Shackle Thimble (optional Extra)

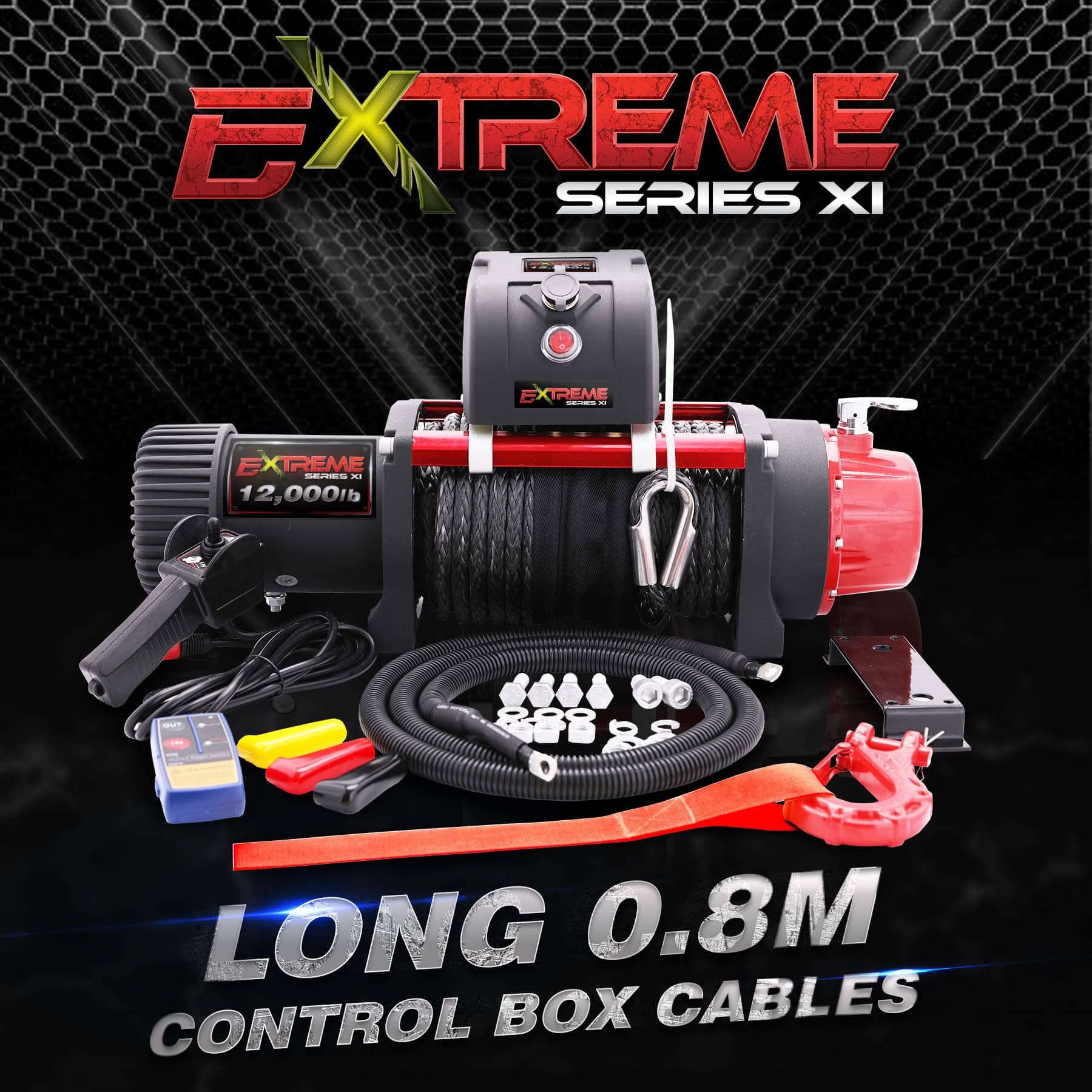

Package includes:
  • 12,000LB Winch with Dyneema Winch Rope
  • 500A Solenoid Pack with 25mm 2  cables
  • 3.5m Handheld Remote
  • Wireless Remote
  • Aluminium Hawse Fairlead
  • Mounting Bolts
  • UPGRADED Cables 0.8m Length and sleeved for protection.
    The extended cable length allows you to remotely locate the control box either side of
  • the winch, for bull bars with limited mounted space.
  • As well as the standard control mount on top of the winch, We have provided a
  • EXTRA bracket designed to help locate control box in new style bull bars.
Features:
  • Free spooling clutch
  • Winch power in and out via remote
  • Automatic braking action.
  • 100% Waterproof competition grade Solenoids
  • High output series wound motor
  • Heavy duty robust construction

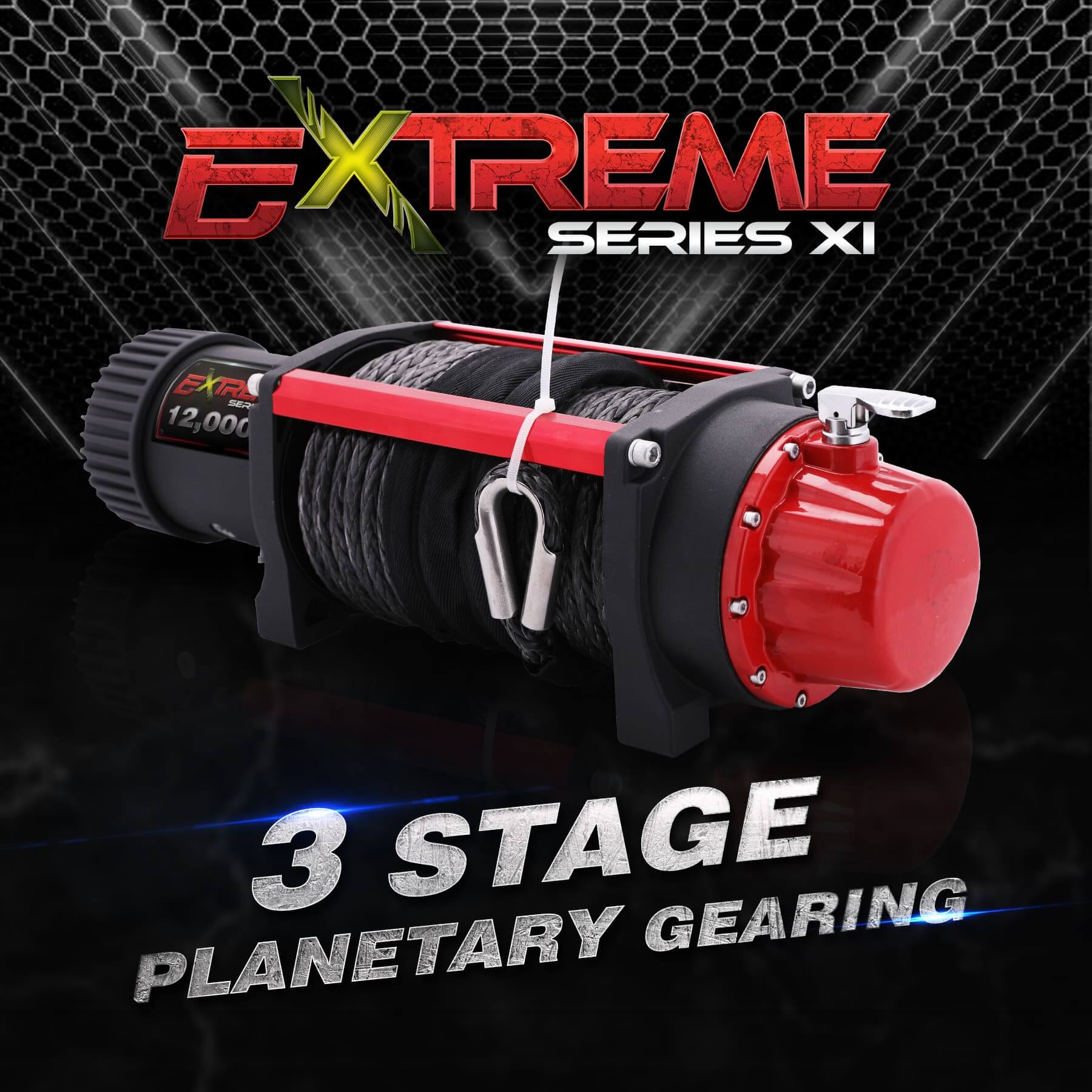

  • 3 stage planetary gearing
Specifications:

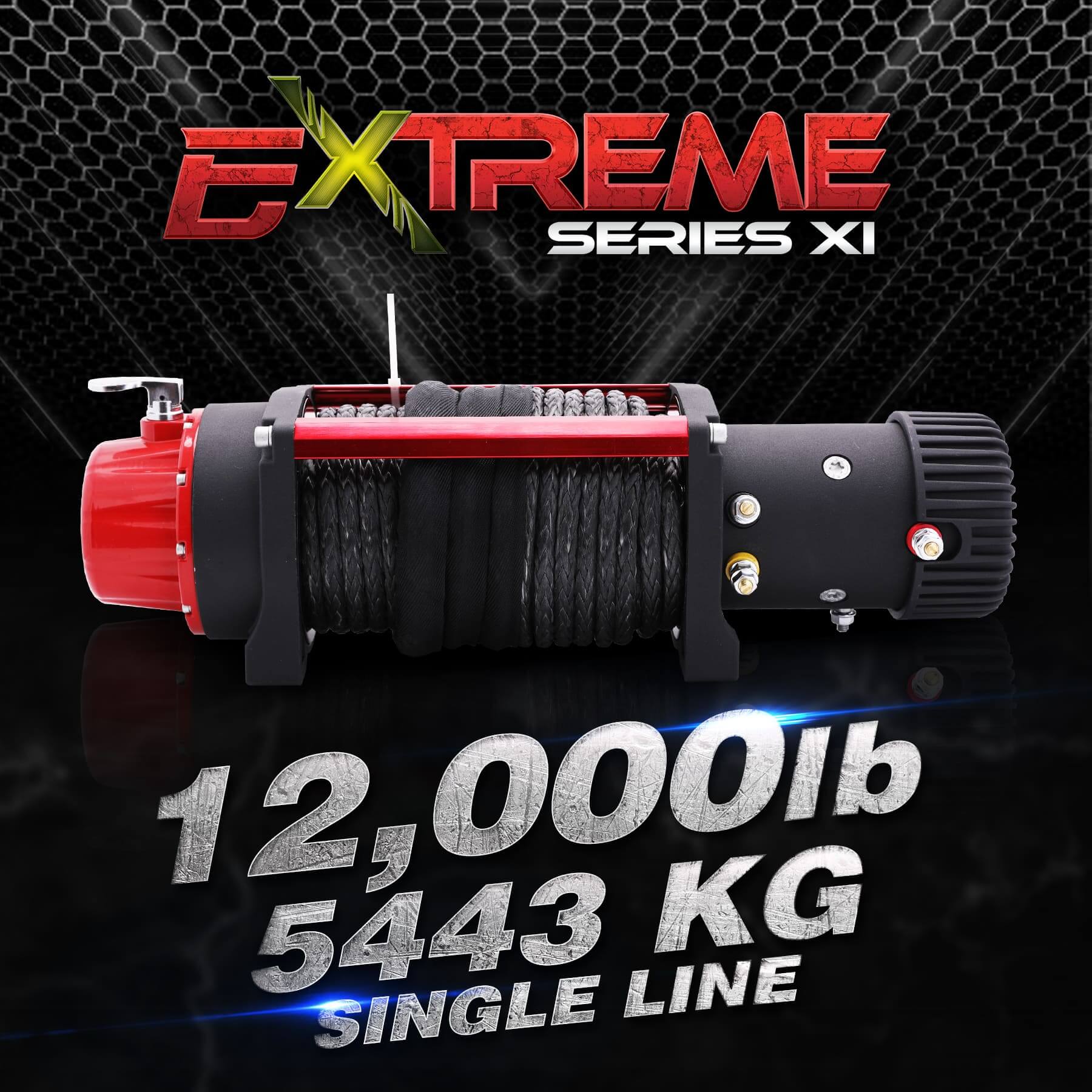

Rated Line Pull 12,000lb (5443kg)
Motor – Series Wound (12V) 5.2kW/7.0hp
Gear Reduction Ratio (12V) 216:1
Dyneema Winch Rope 10mm x 24M
Overall Dimensions 555mm x 162mm x 170mm
Mounting Bolt Pattern 254mm x 114.3mm

Rated Line Pull: 12000LB(5443kg) single-line
Motor:7.0hp/5.2kw 12V, Series Wound motor
Gear Train: 3-stage planetary
Gear Reduction Ratio: 216:1
Clutch: Up and down 90°
Synthetic Rope: φ3/8”×92” (φ9.5mm×27m)
Drum Size: φ2.51”×8.82”(φ64mm×224mm)
Overall Dimensions: (L×W×H)21.1”×6.4”×6.7”(555x162x170mm)
Gross Weight: 59lbs(26.8kg)
Duty Cycle: Intermittently
Fairlead: aluminium fairlead
Package: 1pc/box, 600x245x370mm

Mounting Bolt Pattern: 10”x4.5”(254mm x 114.3mm )
Remote Control: Included

line speed and motor current
line pulllbs04000600080001000012000
Kgs018142722362945365443
P12000Sline speedft/min29.513.59.68.97.56.7
m/min94.12.92.722.32.1
motor currentAMP70150220280320360
